Gravity Paddy Separator

MGCZ series gravity rice separator is a traditional machine for small rice mills. It uses the difference in gravity and surface friction modulus between rice and brown rice to separate brown rice from grain mixtures. This machine is very popular all over the world because it can greatly increase the whole meter output and improve the economic efficiency.

Gravity Paddy Separator Introduction

MGCZ series gravity rice separator is a traditional machine for small rice mills. It uses the difference in gravity and surface friction modulus between rice and brown rice to separate brown rice from grain mixtures. This machine is very popular all over the world because it can greatly increase the whole meter output and improve economic efficiency.

rice_separator_factory

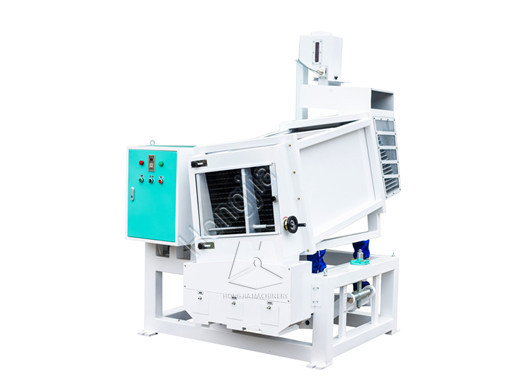

rice_separator_supplier

It is designed with a multi-layer screen so that rice and brown rice can be separated and sent to different work steps for processing. It works by taking advantage of the difference in specific gravity between rice and brown rice. The rice needs to be hulled and then fed into a rice mill to make white rice. After passing through the husking machine, some rice may not be hulled well, so the rice separator separates these parts, and then sends them back to the hulling machine to be hulled again, and then the hulled brown rice will be sent to the rice mill for production white rice.

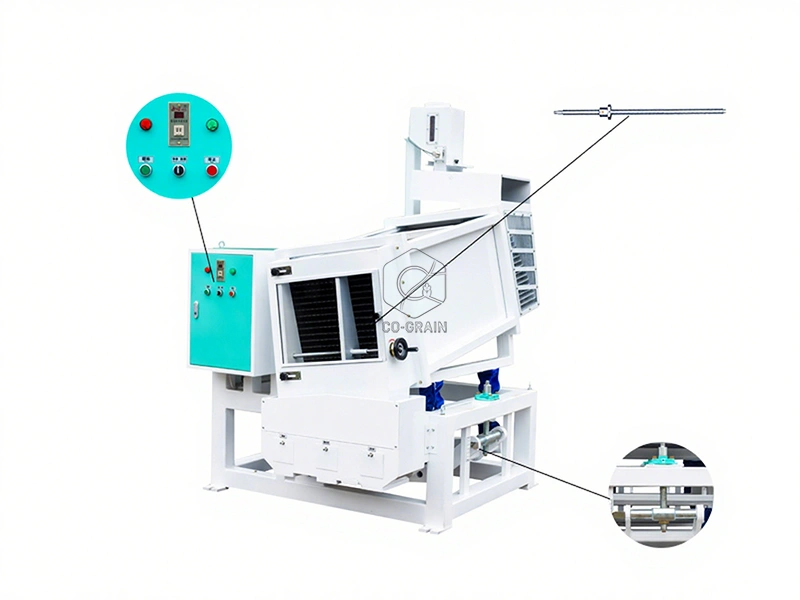

rice_separator_supplier_china

Gravity Paddy Separator Features

1. Nice appearance, compact size, easy to operate, low noise.

2. Good paddy separating effect increases economical benefits greatly.

3. Wide usage for long rice and round rice.

4. Low mechanical barycenter, good balance, and reasonable rotation, so the processing properties are stable and reliable.

Gravity Paddy Separator Technical Parameters

  ModelMGCZ46×20MGCZ60×20MGCZ70×22
Output (brown rice t/h)2~32.5~3.56~7
Broken rice of super rice rate (%)≤5≤5≤3
Broken rice of big broken rice rate (%)≤10≤10≤15
Whole rice of big broken rice rate (%)≤5≤5≤5
Whole rice of small broken rice rate (%)≤1≤1≤1
Rotating speed (rpm)300±5300±5260±5
Number of Screen Layer202022
Size of the screen (L×W, mm)1300×4601300×6001300×700
Power (kw)2.22.22.2
Weight (kg)600750900
Size (L×W×H, m)1.3×1.7×2.11.4×1.8×2.31.5×1.9×2.3
