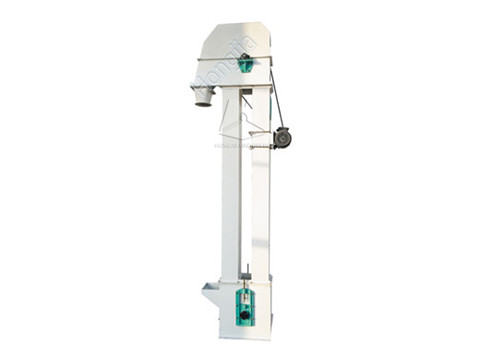

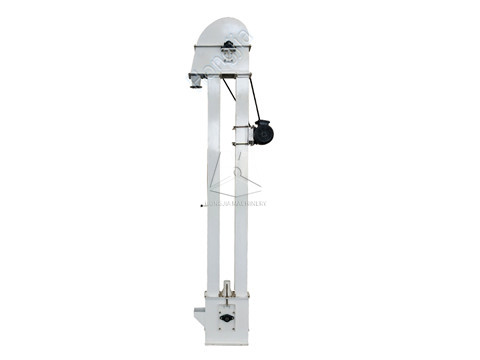

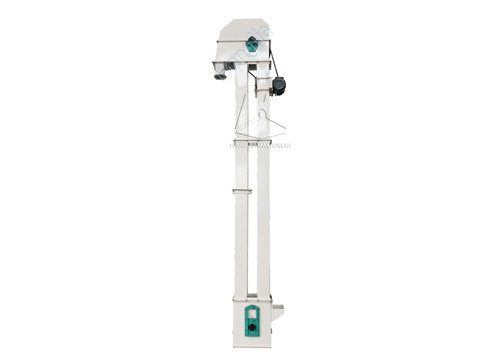

Rice Bucket Elevator Conveyor In Rice Mill Plant

TDTG bucket elevator allows high efficiency and lower capacity vertical elevating of grains, pellets, or powder materials in grain, food, feed, and chemical industry, etc. Employed by advanced designs of round foundation structure, driving pulley, plastic-covered head pulley, this bucket elevator conveyor fulfills reliable conveying of materials with low residual, strong stability, in work.

And for the elevator, its height and working capacity can be made according to the rice production line or the feed production line real situation, a very good working machine, is also a basic need for different models of production line work.

This rice bucket elevator is a necessary machine working in the rice mill production line, to convey the paddy rice materials from one machine to another, is a good working tool to make sure the rice mill plant automatic working.

Rice Bucket Elevator Application

TDTG series bucket elevator is mainly used in grain storage, grain processing factories, oil processing factories, animal feeding factories, as well as in other industries for vertically lifting granular material. The equipment is featured with low space occupation, high lifting capacity, power saving, and stable operation.

Rice Bucket Elevator Features

1. It has characteristics of small driving power, inflow feeding, induction discharge, and large capacity of the hopper-intensive layout. There is almost no return material and material digging in the material lifting, so there is less power lost.

2. With a wide range of elevations, this kind of elevator has fewer requirements for the kinds and characteristics of the materials. It can not only elevate powder of average size or granular materials but also can elevate materials of larger size. Besides, it works well in sealing and has less environmental pollution.

 3. With advanced design principles and processing methods, it is endowed with reliable and stable operation, which ensures operation reliability. And Its MTBF achieves more than 20000 hours. The lifting height is high, and the lifting machine runs stably, so the height of the lifting height can be achieved.

4. It has a long service life. The feeding pattern is inflow, which doesn’t need to dig with a bucket, and has less extrusion and collision between materials. The machine is designed to ensure there are few materials scattered when feeding and discharging, which reduces the wear and tear of the machine.

Rice Bucket Elevator Working Principle

The bucket takes materials from the storage and ascends the materials on the conveyor belt to the top, and then the bucket turns down when bypassing the top wheel and pulls down the materials to groove. A bucket elevator generally uses a rubber belt, which is installed under or above the driving drum or the upper and lower bend pulley. Chain transmission type bucket elevator is usually equipped with two parallel transmission chains, including a pair of drive chain wheels and a pair of bend chain wheels. The bucket hoist is usually equipped with a shell to prevent lifting dust.

Technical Parameter of TDTG Bucket Elevator

For the bucket elevator machine for the rice processing machine, we have different models with different capacities to be suitable for different client's needs, also if clients have special requirements for the machines, we can customize them for you.
