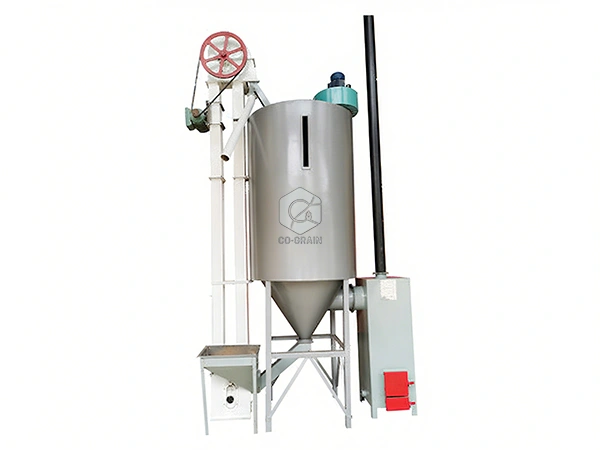

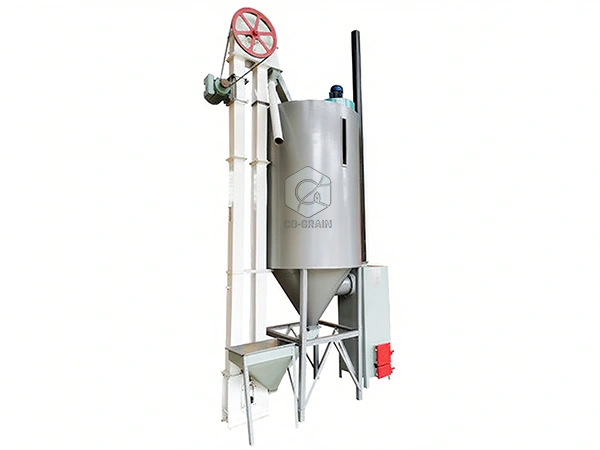

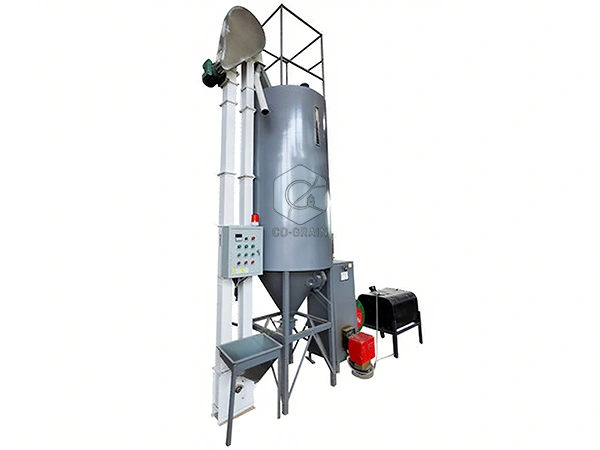

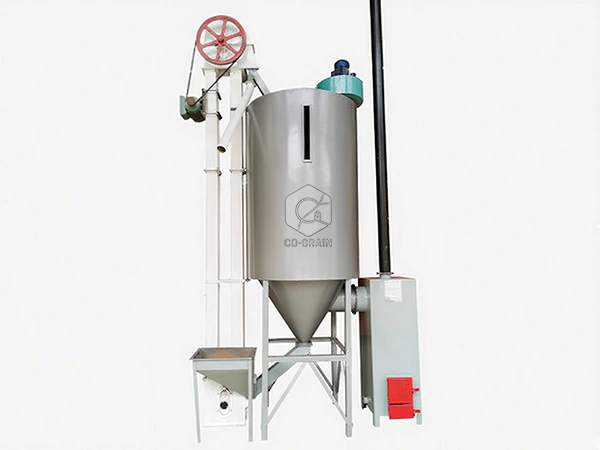

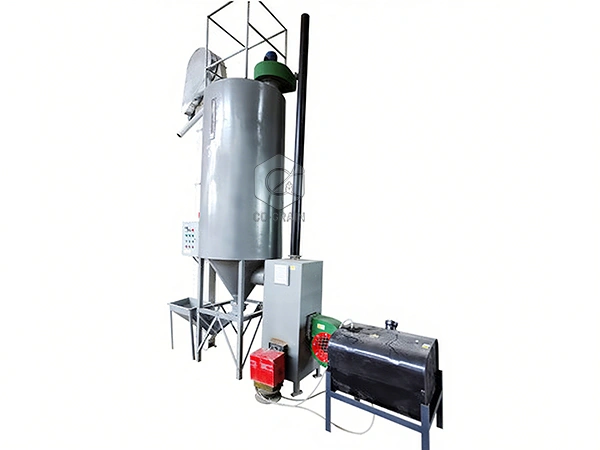

Small Paddy Dryer Introduction

This small rice paddy dryer is mainly used to dry grain paddy in parboiled rice mill plants. Based on our rice engineering experience and traditional technology, we improved the transmission system and the material breaking device and finally improved the rice dryer efficiency and overall performance of the grain dryer. The whole rice grain dryer consists of a feeding device, drying warehouse, environmentally, friendly coal-fired hot stove and air supply system, electric control system, etc.

The grain dryer machine consists of a two-level spiral quick delivery, often used for drying some grains, such as rice, wheat, corn, soybean, and so on. We also provide customers with rice grain machines, and corn dryer machines.

The first level delivers the materials quickly into the barrel, and the second level continuously rapidly lifts the raw material to the upper of the barrel and then throws the raw material with deliquesce scattered, while the hot air from the center of the barrel bottom is blown out all around. Smoothly move the raw material from bottom to top to conduct a comprehensive heat transfer and dynamic drying process.

Because the raw materials inside the barrel are kept rolling, hot air is continuously from the center to achieve mixing and drying simultaneously and can save time and energy.

The material of barrel, screw blade, shaft, tank, and holder which contact part of the raw material all use stainless steel.

When need to clear the material, just open the purging mouth, to make a spiral reverse, and start drying the fan then can clear the material, easy to operate.

Small Paddy Dryer Advantages

1. It has the characteristics of low-temperature control, energy-saving and pollution, low operating cost, large precipitation (one can be reduced to safe moisture), low cost, easy operation, and convenient movement.

2. Low cost of energy, excluding labor, usually 1-2 people.

3. Hot air system, air supply system, feeding device, lifting device, grain drainage device, dust removal system, electrical control system, mobile device system.

4. Free land-based, saving time investment, easy to use, flexible, small footprint, with mobile devices, flexible and convenient place to work. The use of the controlled temperature of pure hot air and food heat exchange.

5. Applicable to corn, wheat, rice, soybeans, rapeseed, and other grains. Drying cereal is shiny and bright, with no paste, and the cracking rate is lower than the national standard corn standard of 4%. Drying the finished rice with a bursting rate below 2%, and a cracking rate of less than 4%, the machine is a commodity food dryer, to ensure maximum grain drying the highest burst rate, the color showed a natural state, eliminating grain pollution.

Rice Mill Dryer Technical Parameters
